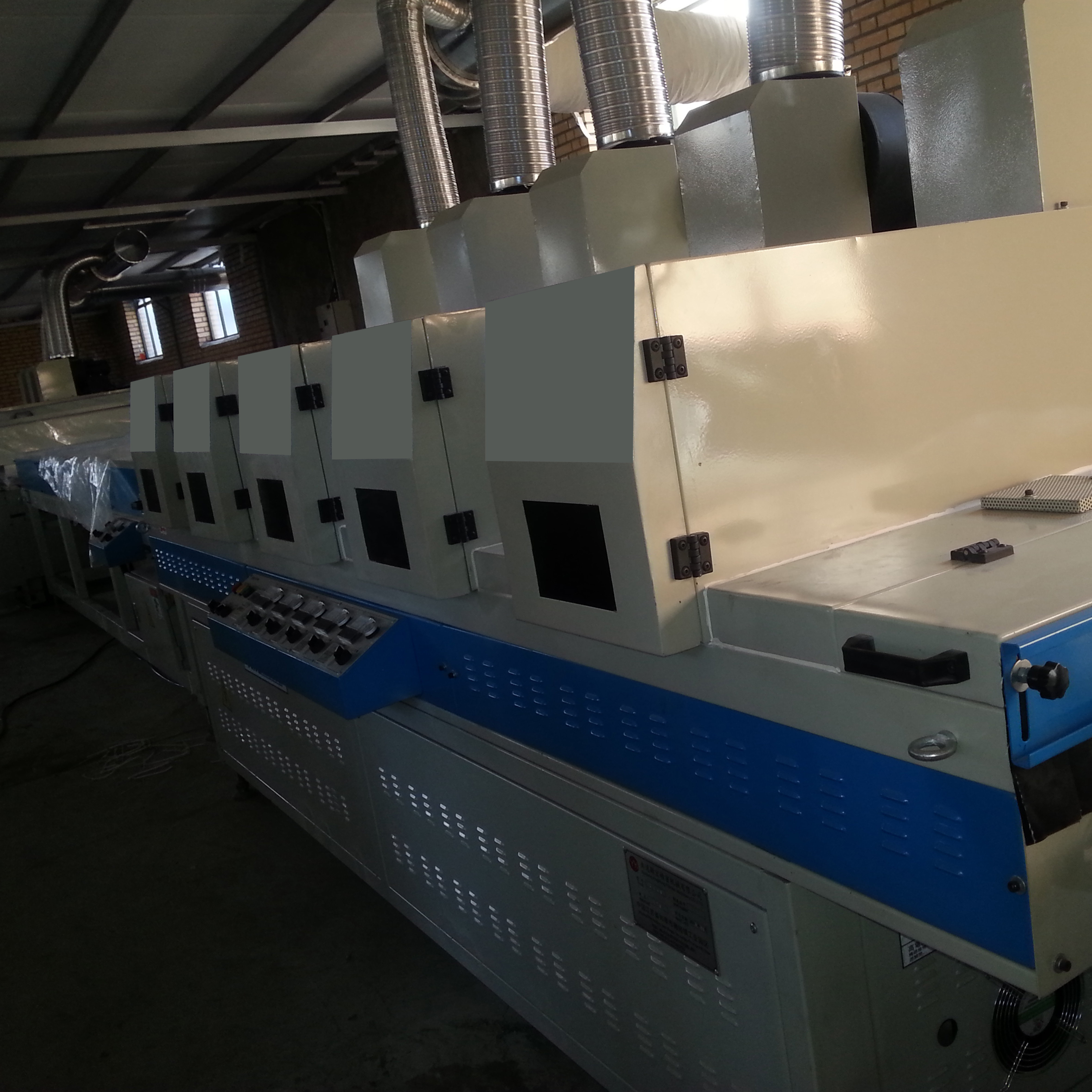

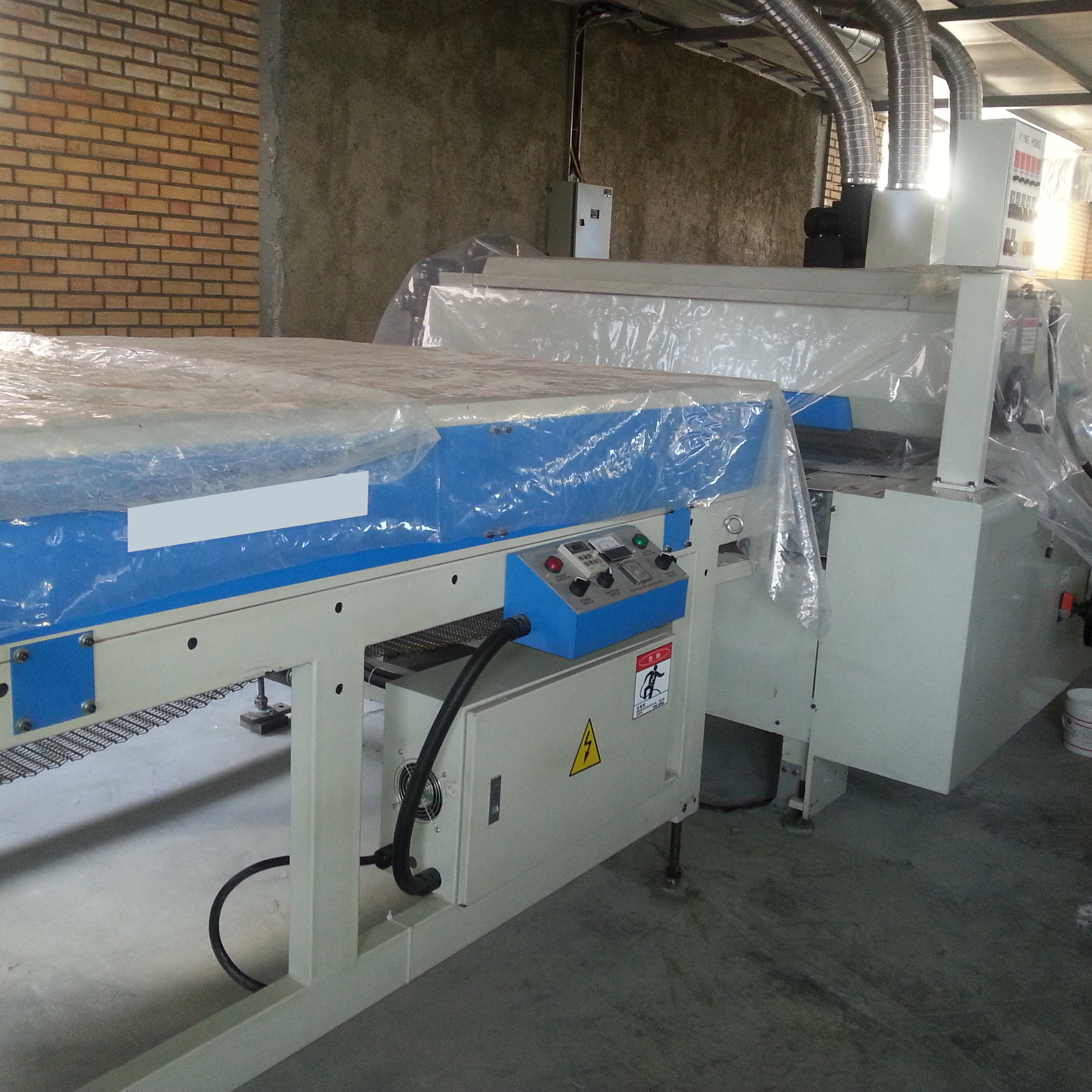

UV Coating Line for PVC Floor Tile Production

Home Products supporting equipment for pvc floor machine UV Coating Line for PVC Floor Tile Produ
UV Coating Line for PVC Floor Tile ProductionUV Coating Line for PVC Floor Tile ProductionUV Coating Line for PVC Floor Tile Production

UV Coating Line for PVC Floor Tile Production

  • Product Item:LP-003
  • Automatic Grade: Automatic
  • Coating Width: 620/1020/1320 mm
  • Coating Thickness: 2-80 mm
  • Minimum Coating Length: 300 mm
  • Category:supporting equipment for pvc floor machine
  • Inquiry Send Email

    Description

    UV Coating Machine

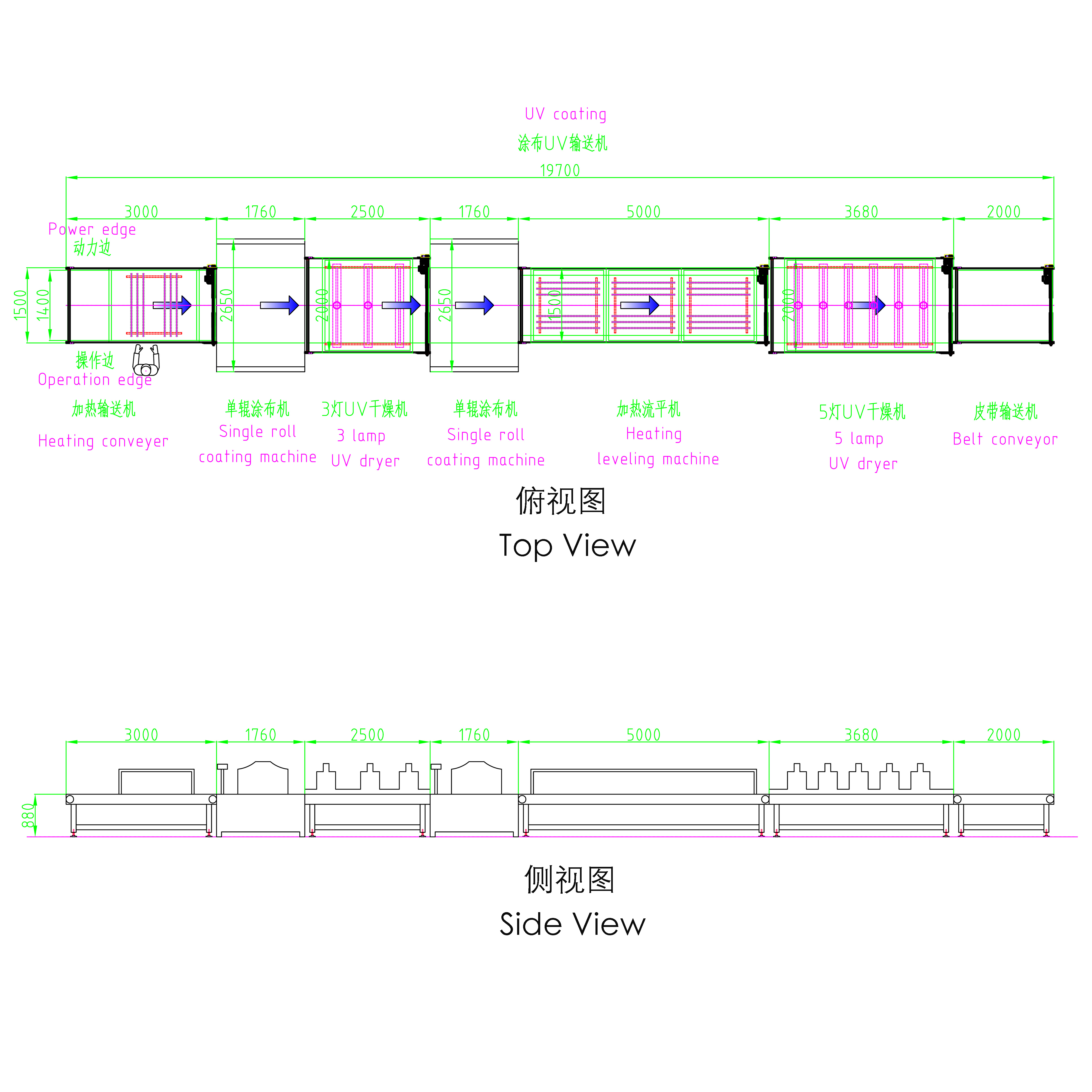

    SPECIFICATION

    (I)

    Horizontal heating conveyor

    3M length

    1 set

    1

    m/c Dimension

    3000*1650*850(250)mm

    2

    Mode:SS stainless mesh belt1320mmW

    3

    motor/inverter 0.75KW/TaiwanShilin brand

    Taiwan-Shilin-good quality

    4

    baking oven:2000*1500*250mmH

    5

    Temperature T50-80ºC

    (II)

    model1300 high
    Precise/evenness single roller coating mc.

    1 set

    1

    machine dimension
    1760*2800*850(700)mm

    coating system

    1

    coating roller Φ300*1450mm* 1piece:

    2

    Evenness shinning coating rollerΦ165*1450mm*1 pc

    3

    Base coating roller Φ185*1310mm*1pc

    4

    power motor-TECO motor-very very good
    TECO 2.2KW/ inverter-Shilin

    5

    base roller coating motor
    1.5KW/inverter Shilin

    6

    Shinning roller coating motor
    TECO 0.75KW/INVERTER Shilin

    7

    diaphragm pump 44* -1pc

    8

    heating tank:450*400*300* 1pc

    2 conveyor system: dual  roller conveyor system

    (III)

    Shilin inverter 0.75KW /* 2sets

    (III)

    2 meter belt conveyor 1300 model

    1 set

    1

    machine size2000*1700*850 mm

    2

    belt  conveyor
    PVC 2T*1320 mm

    3

    motor Shilininverter0.37KW


    FEATURES
    1.The UV coating machine is suitable for all kinds of PVC sports flooring, plastic, metal, such as surface coating, the coating machine of the paint surface is smooth, good plumpness, without off color, luster evenly.
    2.The UV coating machine adopts PLC control system, synchronous operation convenient quickly.
    3.Electric operation by independent wheel and tire machine of decelerate of inverter and control precision.
    4.Configuration import scraper, solvent resistance.
    5.The machine can be coated all kinds of paint, such as UV, NC coating recovery quickly without waste.
    6.Workpiece coating can be controlled between 5-10 g / m2.
